C300B - Three Phase Power Calibrator and Tester of Power Engineering Devices

C300B - Three Phase Power Calibrator and Tester of Power Engineering Devices

Three phase, class 0.02 and 0.05 power quality calibrator up to 120A (360A) and 560VAC with programmable power quality parameters. It makes possible to make automatic test of electricity meters, measurement transducers, current transformers and protection relays.

Data sheet

CP11B - Power calibrator and protection relay test set

CP11B - Power calibrator and protection relay test set

Single phase, class 0.02 and 0.05 power quality calibrator up to 120A and 560VAC with programmable power quality parameters. It makes possible to make automatic test of electricity meters, measurement transducers, current transformers and protection relays

Data sheet

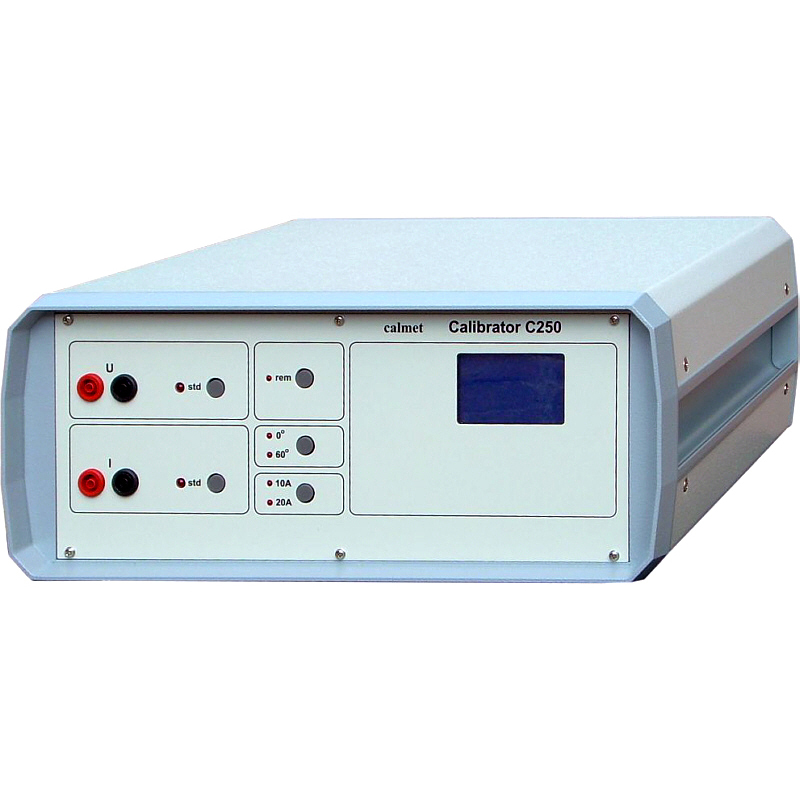

C250 - Single phase power calibrators

C250 - Single phase power calibrators

Single phase power calibrators with predefined settings. It makes possible to effective adjust and test measuring instruments

Data sheet

MPX8 - Meter error calculator

MPX8 - Meter error calculator

Eight channel meter error calculator together with C300 calibrator is used for testing simultaneously up to eight electricity meters

Data sheet

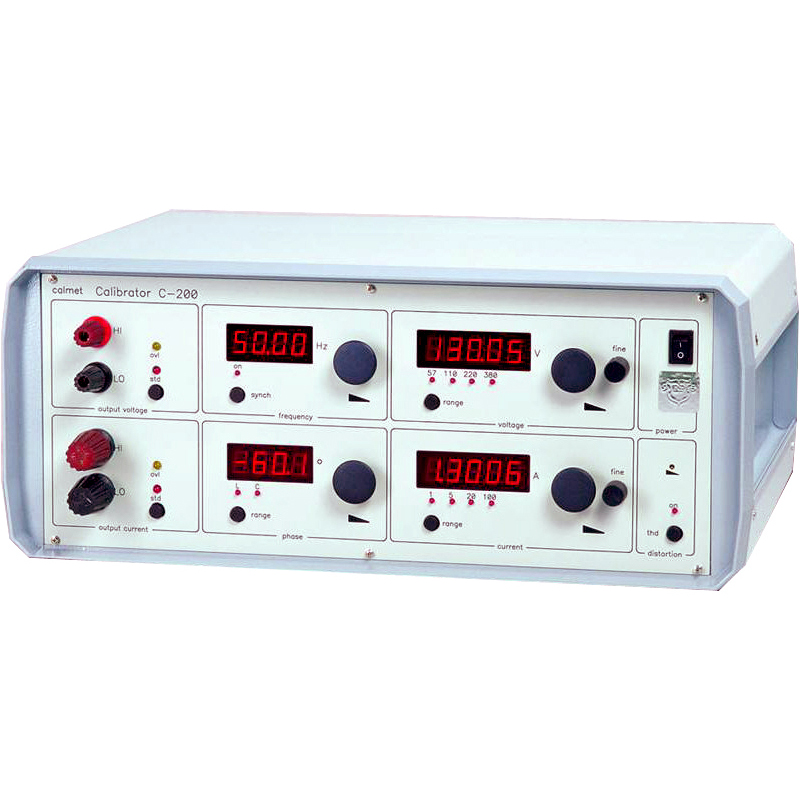

C200 - Single phase power calibrator

C200 - Single phase power calibrator

Series of single phase sources of voltage and current, up to 20A or 100A and set phase and frequency. They make possible to check power analysers clamps up to 1000A. Used also as a phantom load for single phase electricity meters checking

Data sheet

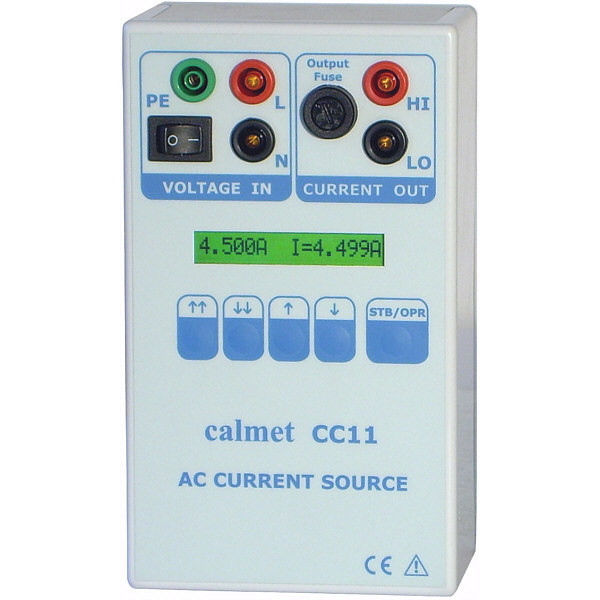

CC11 - Single phase AC current source

CC11 - Single phase AC current source

The CC11 is single phase AC current source class 0.2 with signal frequency equal to 50/60Hz and with phase shift 0° or 180° relative to the supply voltage. The CC11 enables to generate current in range up to 5A at the supply voltage 85..264V

Data sheet

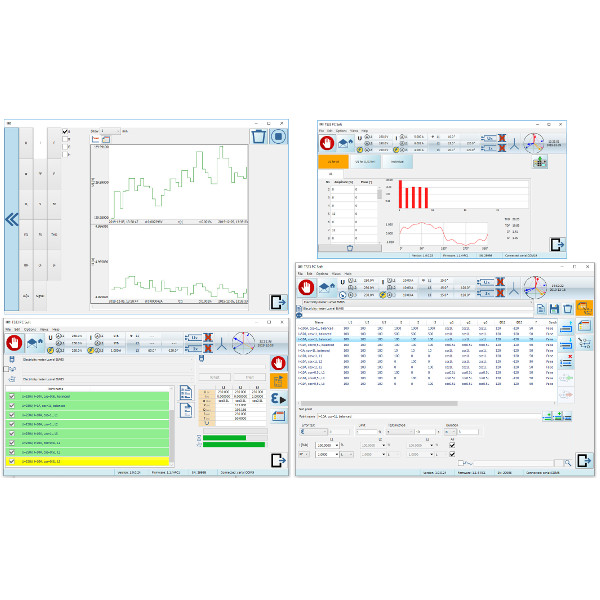

Calpro 300 - Software for C300 calibrators

Calpro 300 - Software for C300 calibrators

PC software for control of C300 calibrator and automatic testing of power industry equipment

Data sheet

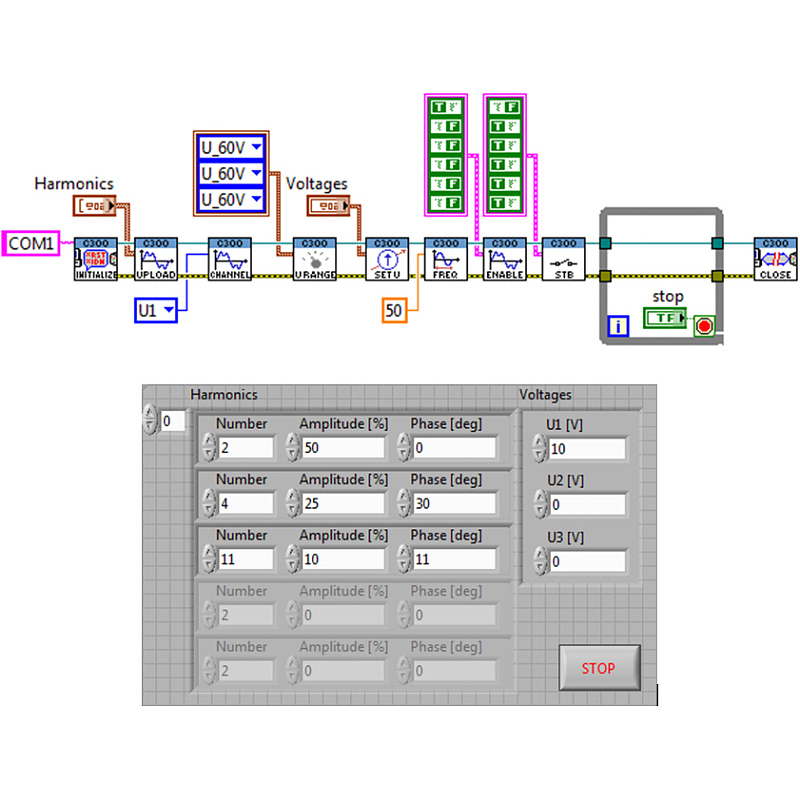

C300 LabView - LabView Driver

C300 LabView - LabView Driver

National Instruments LabView driver for control C300 calibrator. It makes possible to set voltages, currents, angles, frequency, harmonics, reading analog inputs of C300 and also to make automatic test of electricity meter

Data sheet

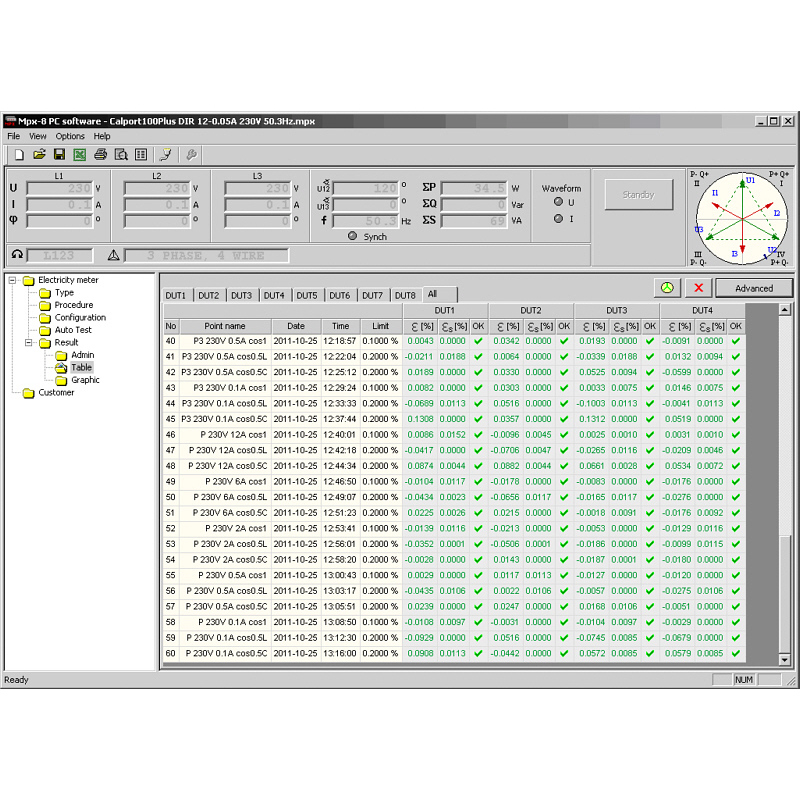

MPX8 PC Software

MPX8 PC Software

PC software for control of MPX8 meter error calculator and automatic testing of electricity meters

Data sheet

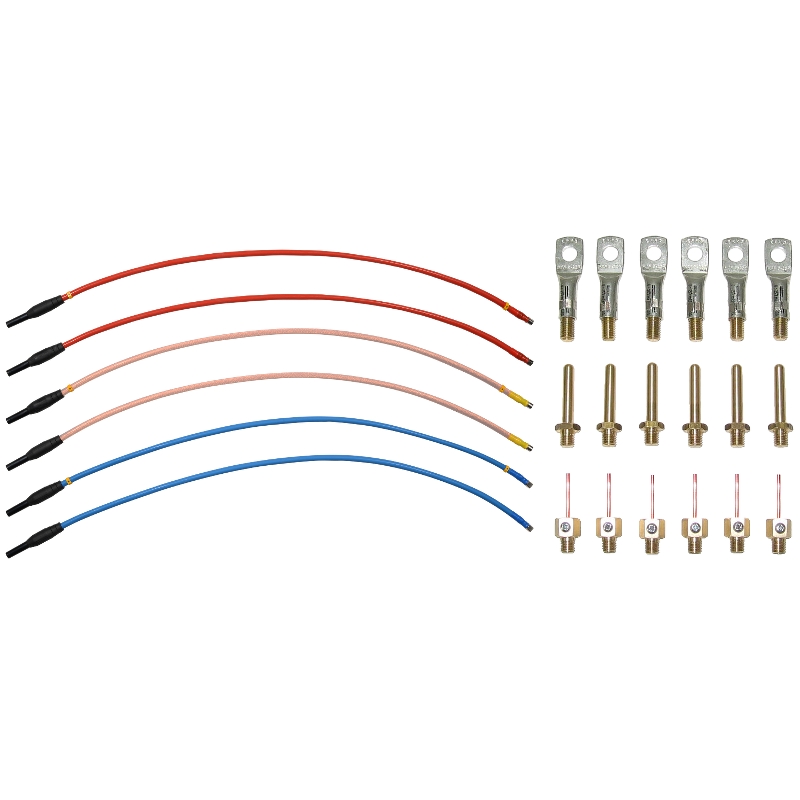

AKD300 - Safe cables 120A and terminals

AKD300 - Safe cables 120A and terminals

Safe cables set for current up to 120A with replaceable terminals which make possible easily connection to different devices

AD300 - Sockets adapter

AD300 - Sockets adapter

Adapter used to lead signals from 7 pin socket, used in Calmet devices, to standard banana socket 4mm and screw terminal

Data sheet

KAS300 - Transportation case

KAS300 - Transportation case

Transportation case for carrying and working with calibrator in hard conditions on the site

CF106 - Universal scanning head

CF106 - Universal scanning head

Universal miniature scanning head for detecting (counting) impulses from inductive, LED and LCD energy meters.

Data sheet

CF100 - Head for meters with LED flashing

CF100 - Head for meters with LED flashing

Miniature photo head with vacuum cup clamping for counting LED flashing of tested meter. It contains also button for inductive meters testing by method "start/stop"

Data sheet

UCF100 - Photo head's holder

UCF100 - Photo head's holder

Alternative mechanical mount of CF100 and CF101 photo heads with head's sucker used for energy meter testing

Data sheet

ZW100/10A & ZW10/20A - Coil

ZW100/10A & ZW10/20A - Coil

100 turns coil for current up to 10A and 10 turns coil for current up to 20A for clamps and clamps meters checking
by using with calibrators series C101, C200, C233 and C300.

Data sheet

ER20 - Single position rack

ER20 - Single position rack

Single position rack for fast and easy mounting of different electricity meters for the efficient testing of meters

Data sheet

ER20 - Single position rack

ER20+EH20 - Rack with quick connection device

Rack ER20 with quick connection device EH20 for fast and easy mounting and connecting of electricity meters with current up to 100A for the efficient testing of meters

Data sheet

ER20 - Single position rack

ER20.3+EH20.3 - Three position rack with quick connection devices

Three position rack ER20 with quick connection devices EH20 for fast and easy mounting and connecting of electricity meters with current up to 100A for the efficient testing of meters
